Belt driven double stage air compressors NS59 series

Heavy-duty, high working pressure

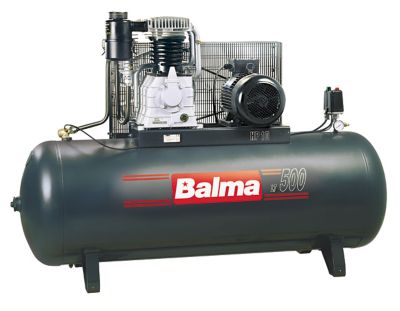

NS59S/500 FT10

NS59S/500 FT10

The NS59 series has all the benefits of the previous series, with an higher air delivery.   Cast iron cylinders and  conrods with hydrodynamic bearings built with special material, grant high reliability and long life. Provided with Valve plates with special stainless steel and very high resistance, these compressor come equipped with three phase electric motors that warrant good performance also in heavy duty conditions.



  • Suitable for heavy-duty usage with large volumes of air and high working pressure

  • Safe and reliable, designed for long, extended life

  • Ideal for all professional and industrial application


Model Code Liters L/Min cfm HP kW rpm Volt/Hz Phases Bar/psi Dimensions Weight
NS59S/270 CT 7,5 4116020002 270 950 33.55 5.5 3 1400 400/50 3 11/160 1520x590x1260 210 kg
NS59S/270 FT 7,5 4116020004 270F 950 33.55 5.5 3 1400 400/50 3 11/160 1520x590x1260 210 kg
NS59S/270 CT 10 4116020003 270 1210 42.73 7.5 3 1400 400/50 3 11/160 1520x590x1260 220 kg
NS59S/270 FT 104116020022 4116020005 270F 1210 42.73 7.5 3 1400 400/50 3 11/160 1520x590x1260 220 kg
NS59S/500 CT 7,5 4116020015 500 950 33.55 5.5 4 1000 400/50 3 11/160 2030x680x1400 290 kg
NS59S/500 FT 7,5 4116020022 500F 950 33.55 5.5 4.1 1000 400/50 3 11/160 2030x680x1400 295 kg
NS59S/500 CT 10 4116020017 500 1210 42.73 7.5 4.1 1000 400/50 3 11/160 2030x680x1400 295 kg
NS59S/500 FT 10 4116020024 500F 1210 42.73 7.5 5.5 1250 400/50 3 11/160 2030x680x1400 295 kg
