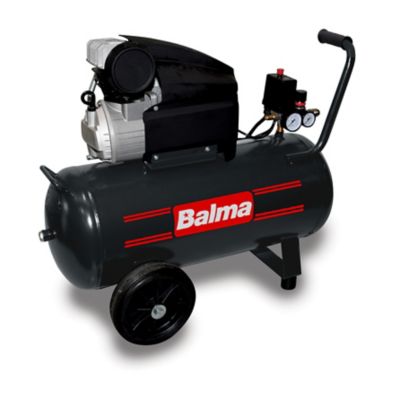

The MS25 and MS30 series are equipped with aluminium heads and cylinders with large cooling fins for better cooling and a larger oil sump for better lubrication. The strip stainless steel valves provide higher output while the forced cooling with air conveying ensures better heat loss. Both series are powered by a single phase electric motor with overheating thermal protection and automatic reset.
Model | Code | Liters | L/Min | cfm | HP | kW | rpm | Volt/Hz | Phases | Bar/psi | Dimensions | Weight |
SIRIO MS25 | 1129100327 | 24 | 270 | 9.53 | 2.5 | 1.8 | 2850 | 230/50 | 1 | 10/145 | 630X320X620 | 28 kg |
ORION MS25 | 1129100332 | 50 | 270 | 9.53 | 2.5 | 1.8 | 2850 |
230/50 | 1 | 10/145 | 940x320x700 | 36 kg |
ORION MS30 | 1129100368 | 50 | 310 | 10.95 | 3 | 2.2 | 2850 |
230/50 | 1 | 10/145 | 940x320x700 | 37 kg |
ANTARES MS30 | 1121390603 | 90 | 310 | 10.95 | 3 | 2.2 | 2850 | 230/50 | 1 | 10/145 | 1200X400X850 | 63 kg |
